PXN CB1 Button Control Box
PXN CB1 Button Control Box
PXN
Couldn't load pickup availability

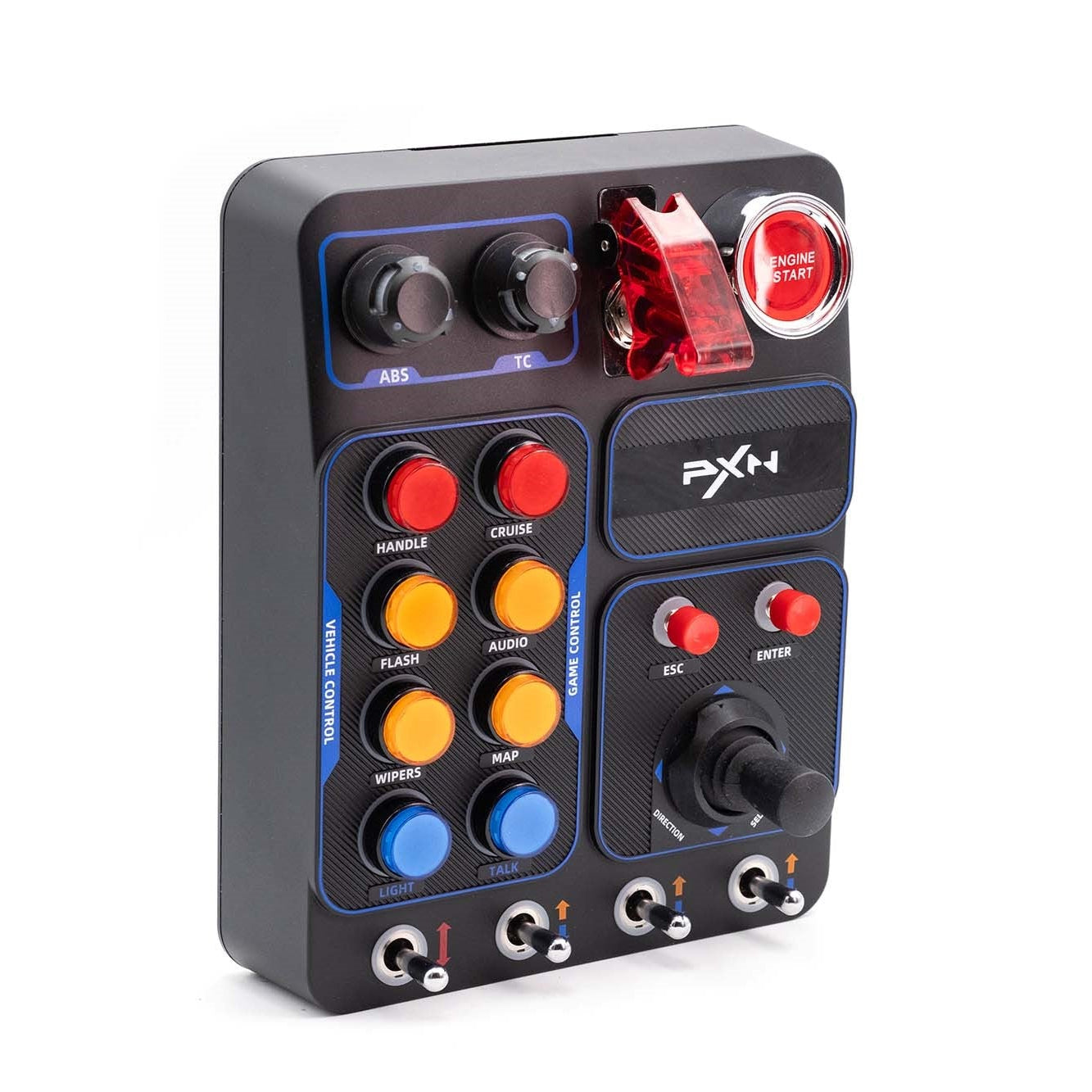

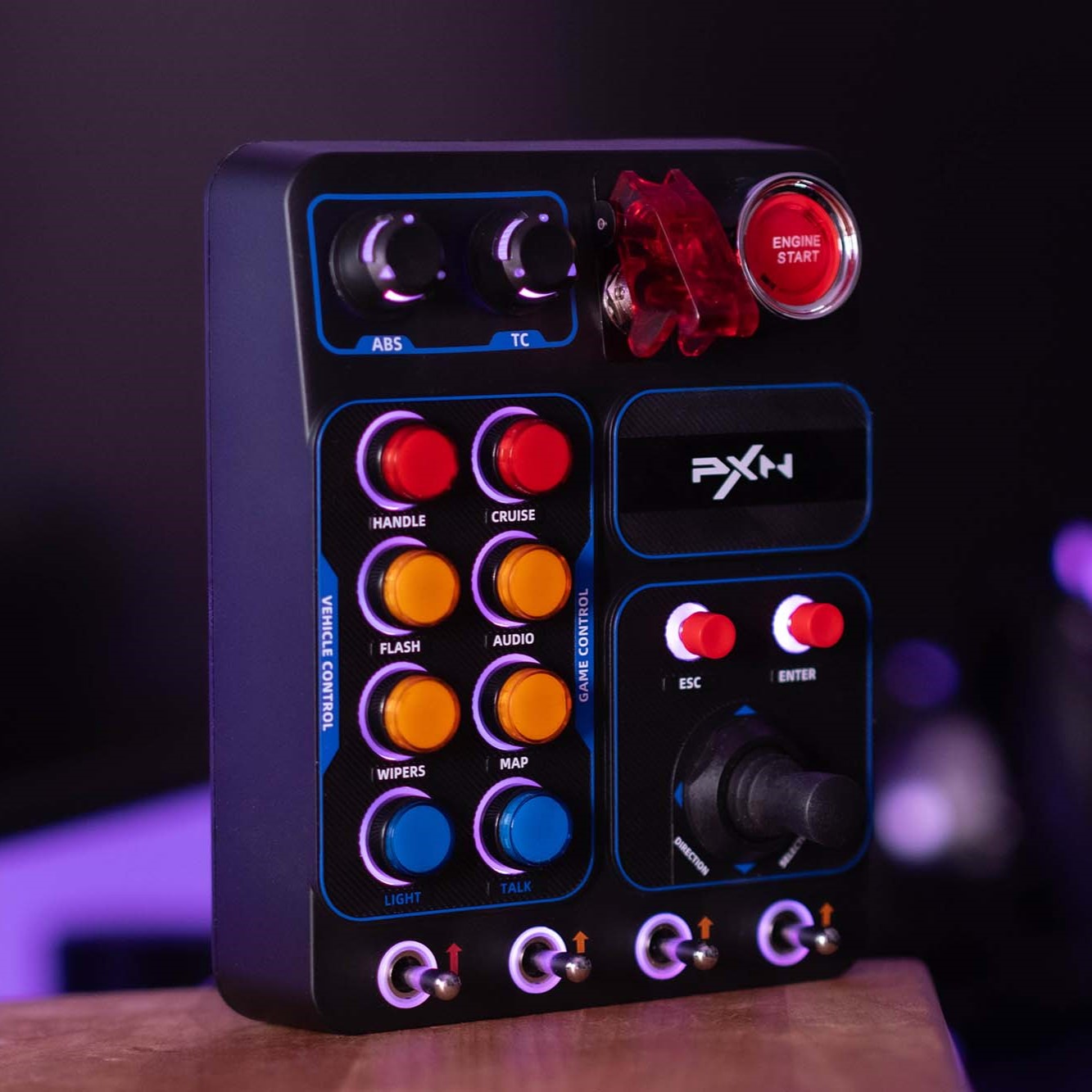

Features
The Button Box is equipped with an on/off switch on the back and offers the following functions

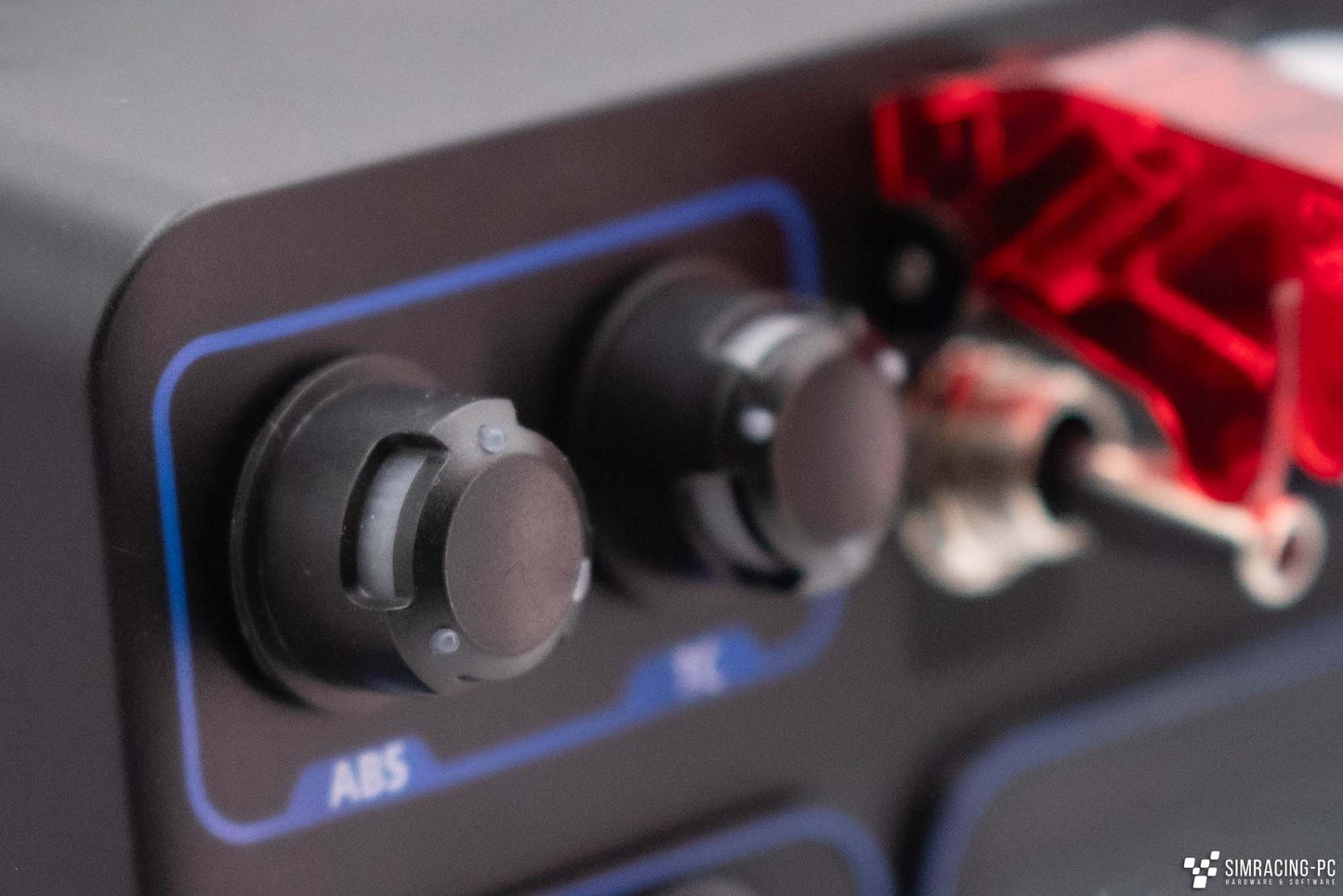

- 2 encoders with additional push function: Two illuminated encoders are installed at the top left, which can be turned without much resistance. They are also equipped with a very crisp trigger force..
- 8 buttons: There are eight illuminated buttons of medium quality on the left-hand side of the button box, the bottom two of which are latching.

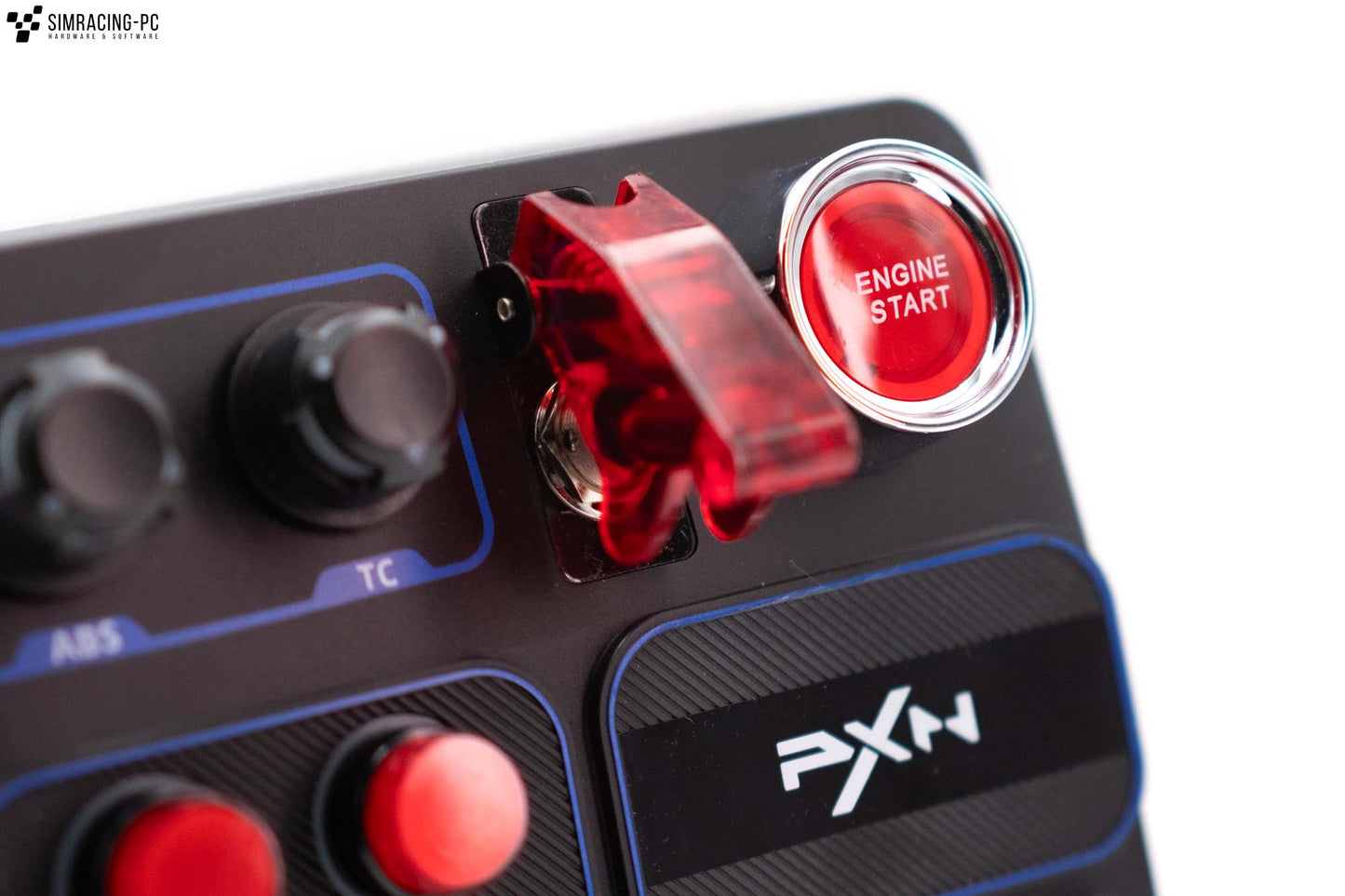

- Kill Switch ON-OFF toggle switch: There is an illuminated Kill Switch ON-OFF toggle switch on the right-hand side.
- Start button: There is a large start button next to the toggle switch, which is surrounded by a plastic frame.

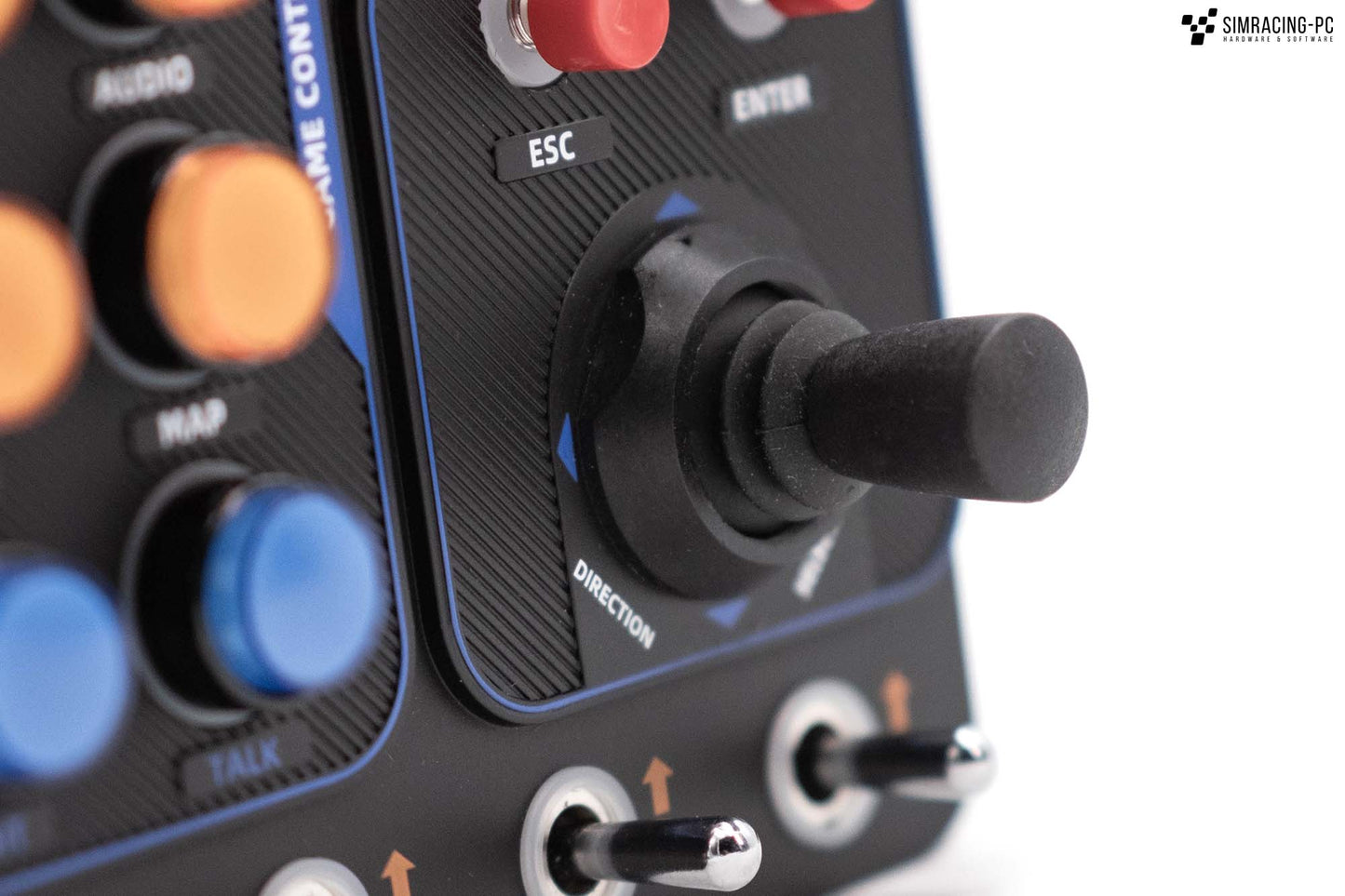

- Joystick: The highlight of the button box is the large four-way joystick, which is ideal for navigating through menus, for example.
- ESC/ENTER buttons: There are two small illuminated buttons above the joystick, which are predefined as ESC/ENTER buttons, but can also be used as normal buttons.

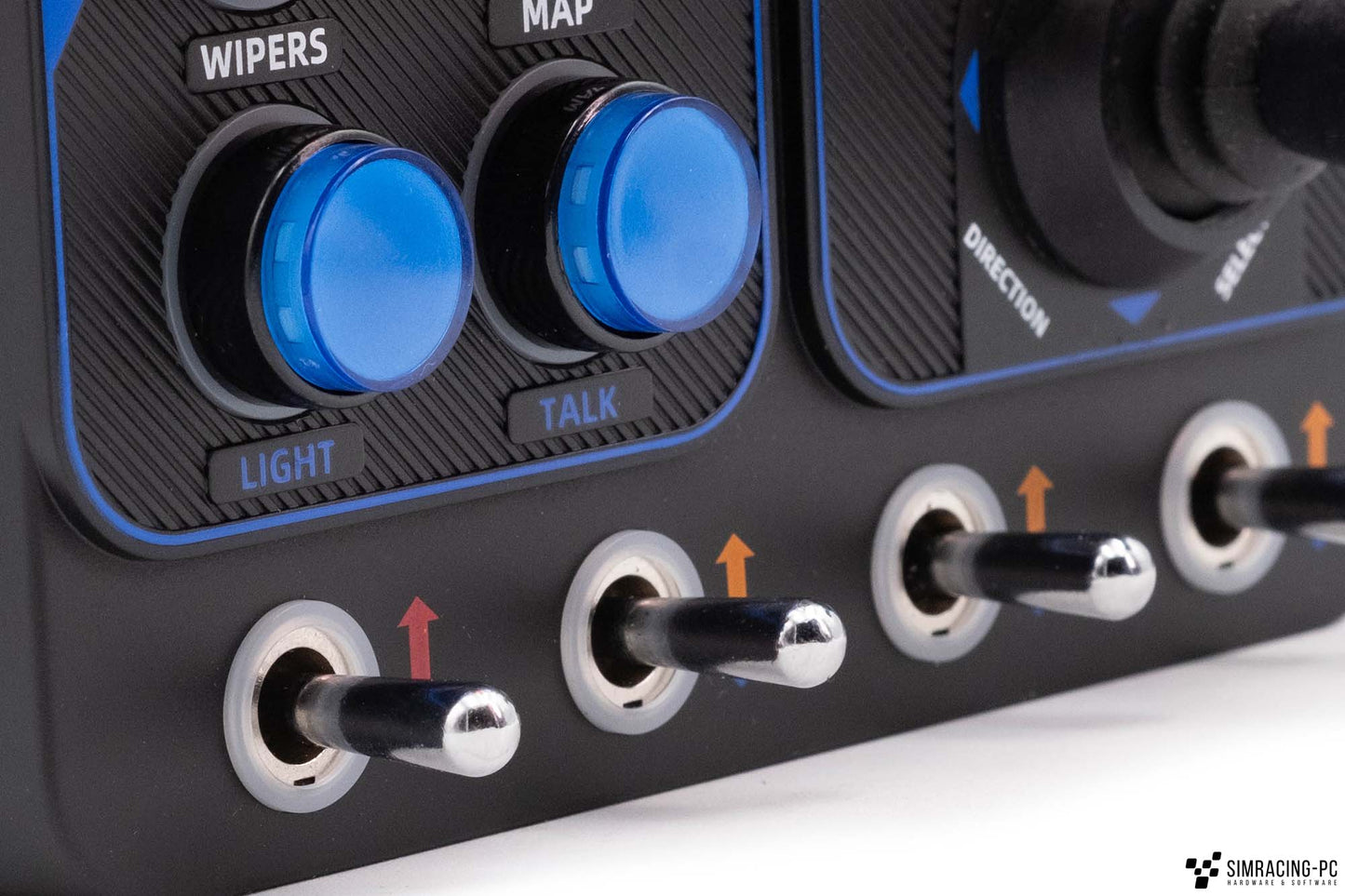

- 4 toggle switches: There are four illuminated metal toggle switches on the underside, with the three on the right being latching. A reversed layout would probably have been better for Sim Racers.
LED's

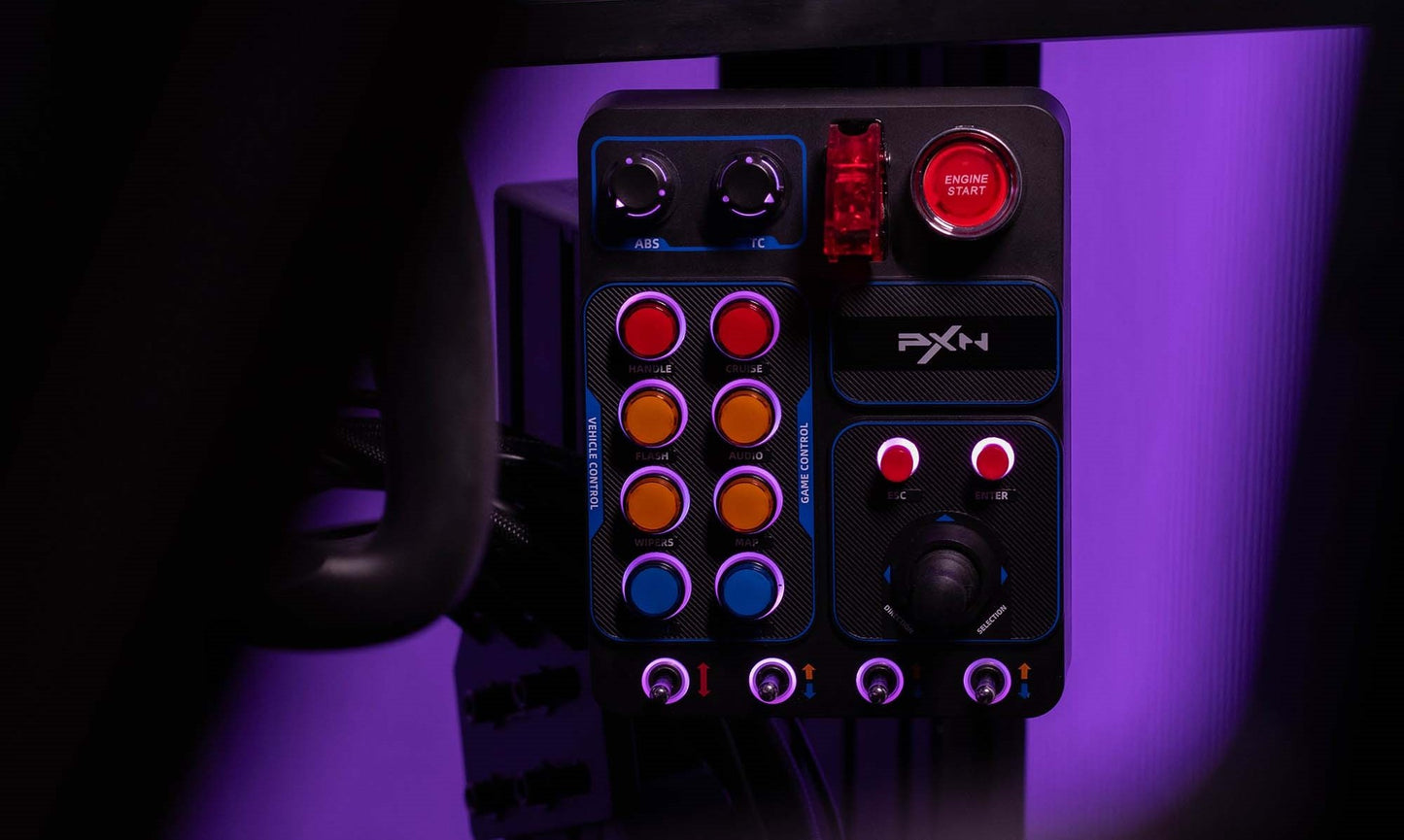

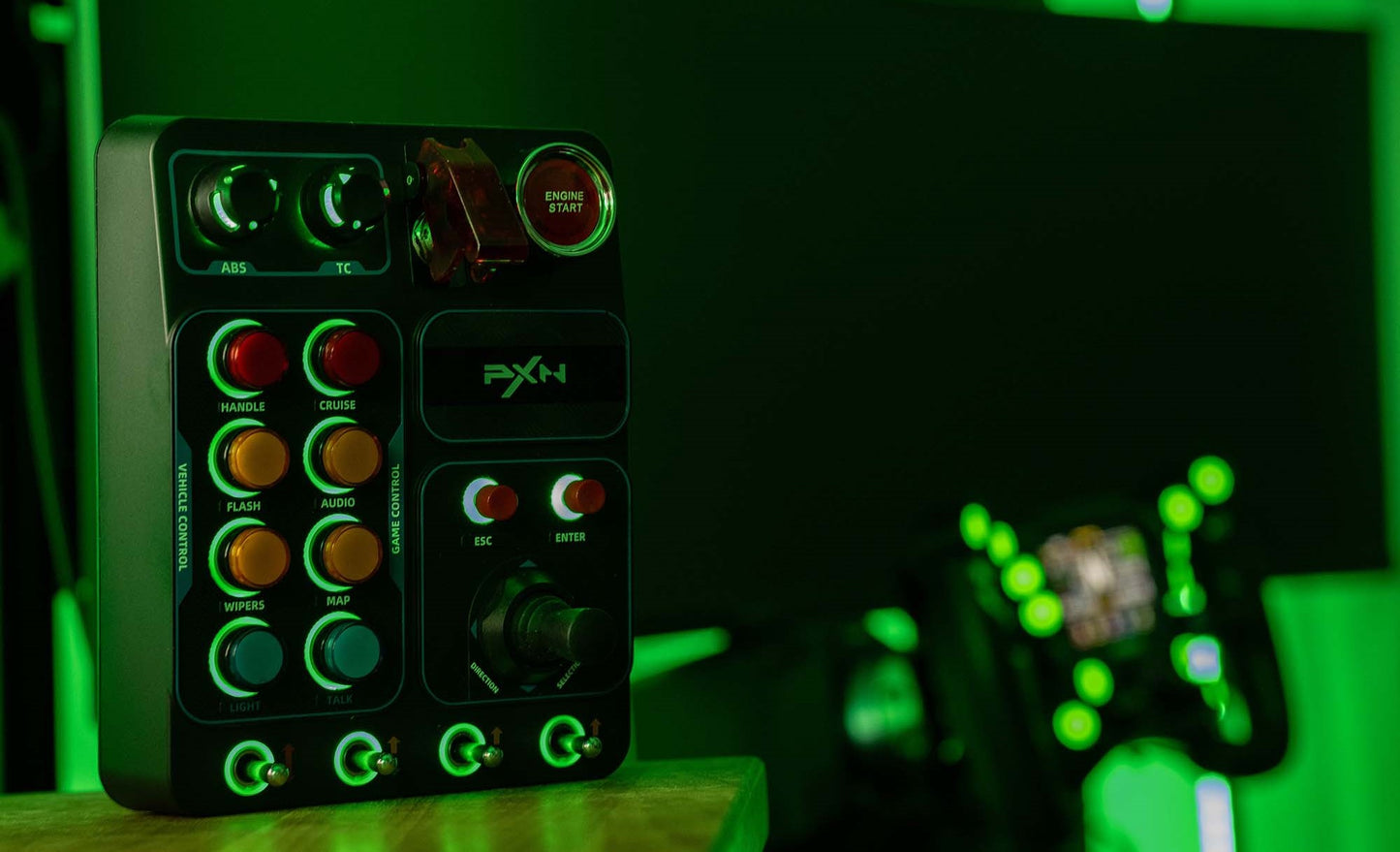

A highlight for a button box in this price range is certainly the seven-color adjustable lighting, which can also be adjusted in brightness (also seven levels). The following colors are available

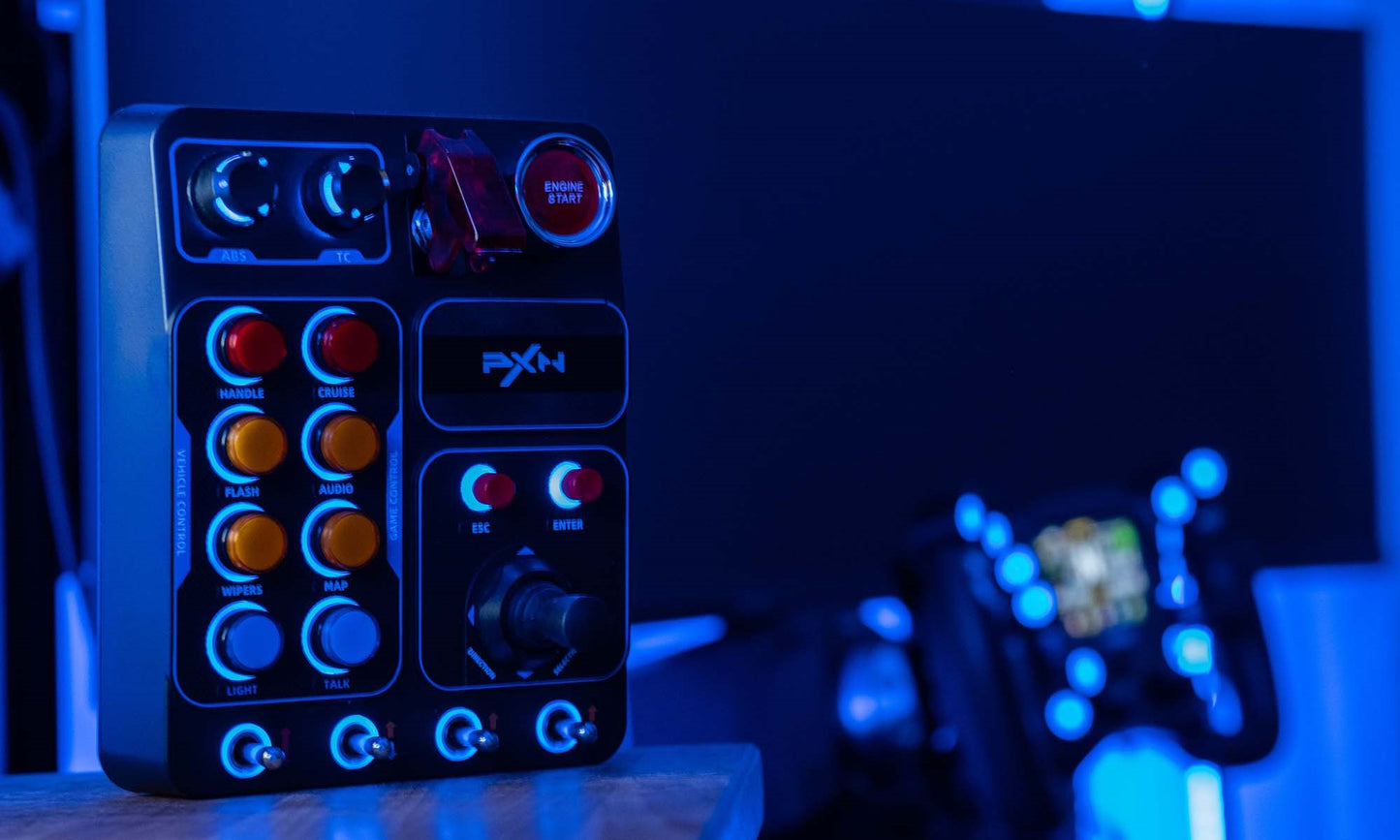

- Blue
- green

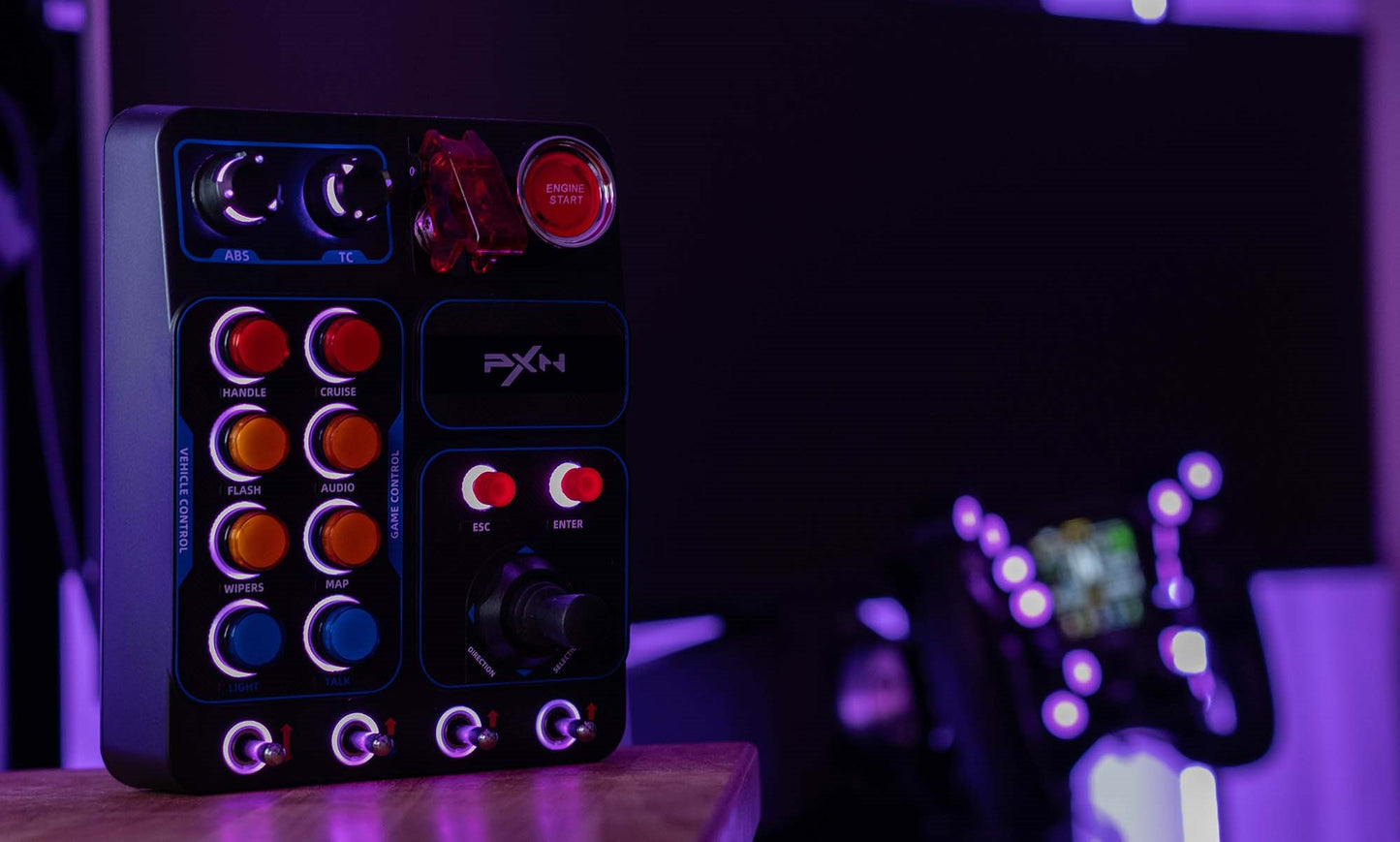

- Purple

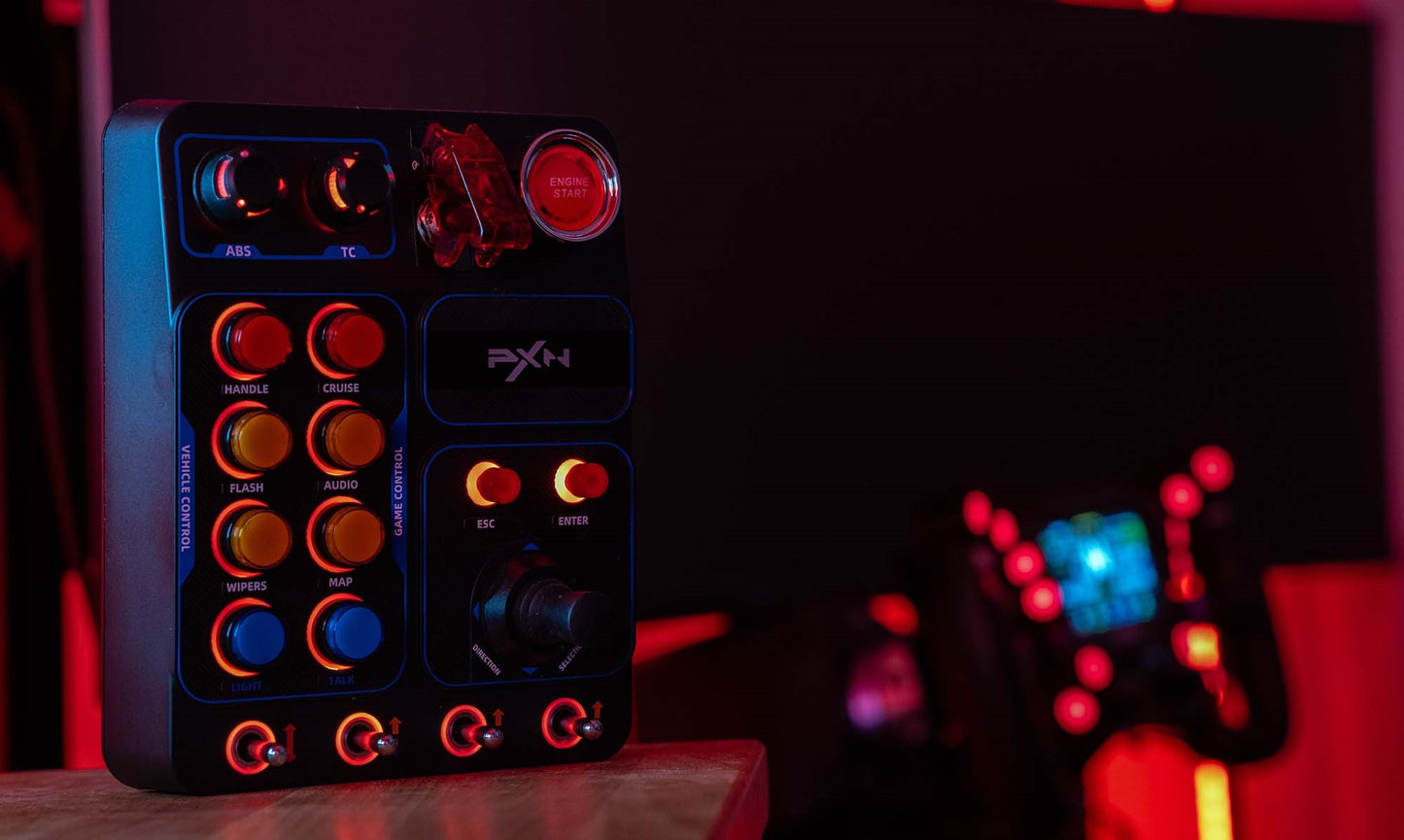

- Red

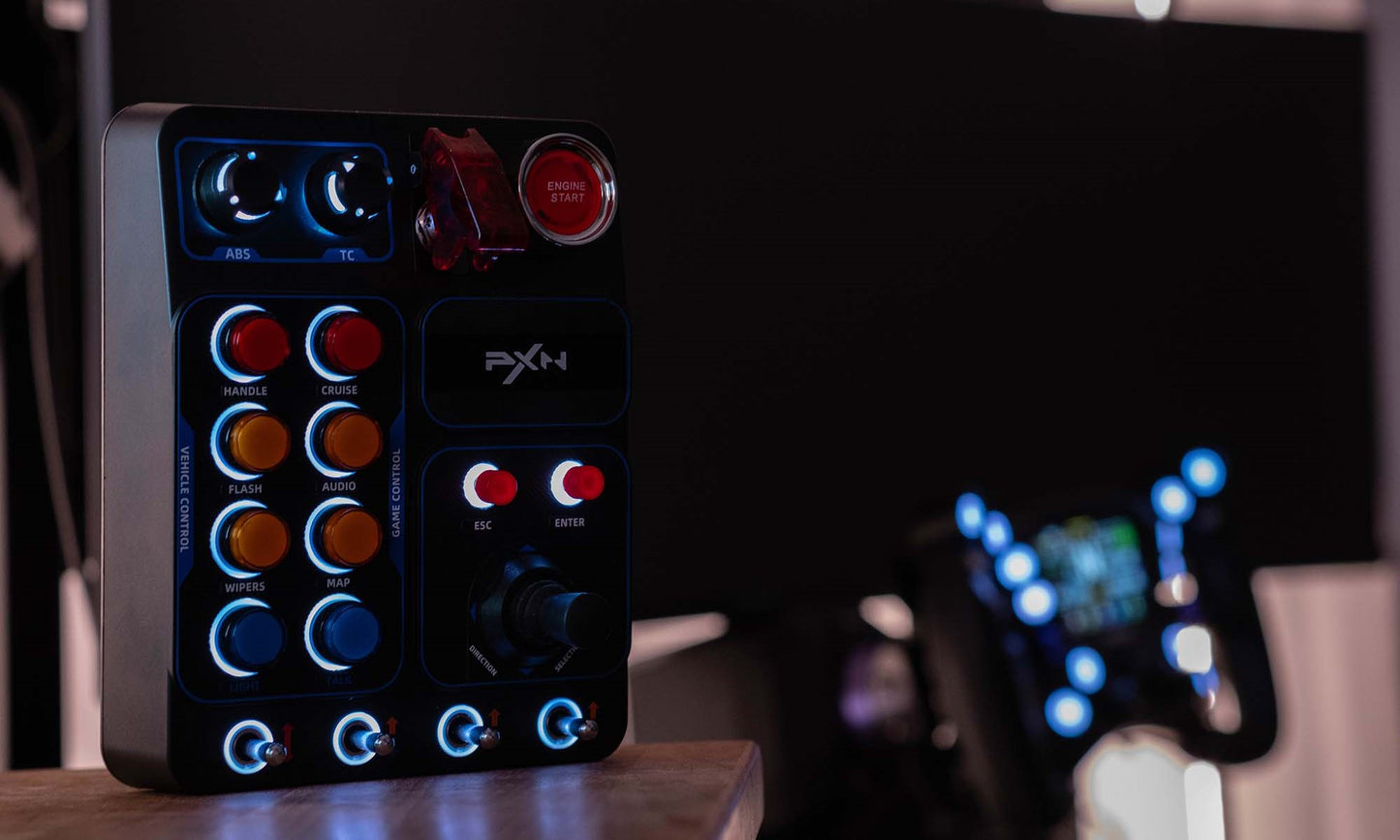

- White
- Yellow
- Turquoise
Software
A clear advantage is the Plug&Play operation, without the need for special software to operate the Button Box. It is simply recognised by Windows as a game controller and all functions are treated as simple buttons. It couldn’t be simpler.
The following options are available for making settings on the box
- Colour: Press the “Handle” button and turn the “ABS” encoder at the same time.
- Brightness: Press the “Handle” button and turn the “TC” encoder at the same time.
- ESC/ENTER buttons: Pressing the “Handle” button while simultaneously pressing the respective button. This allows you to switch between the function as an ESC/ENTER button or a normal button.
Compatibility
The Button Box is designed exclusively for operation on a PC. For this purpose, there is a USB-C connection on the back, which can be connected with one of the supplied cables. There are also a total of seven M5 threaded holes on the back. Three of these are for the supplied table mount and four are designed in the familiar 100 x 100 millimeter VESA mounting pattern.

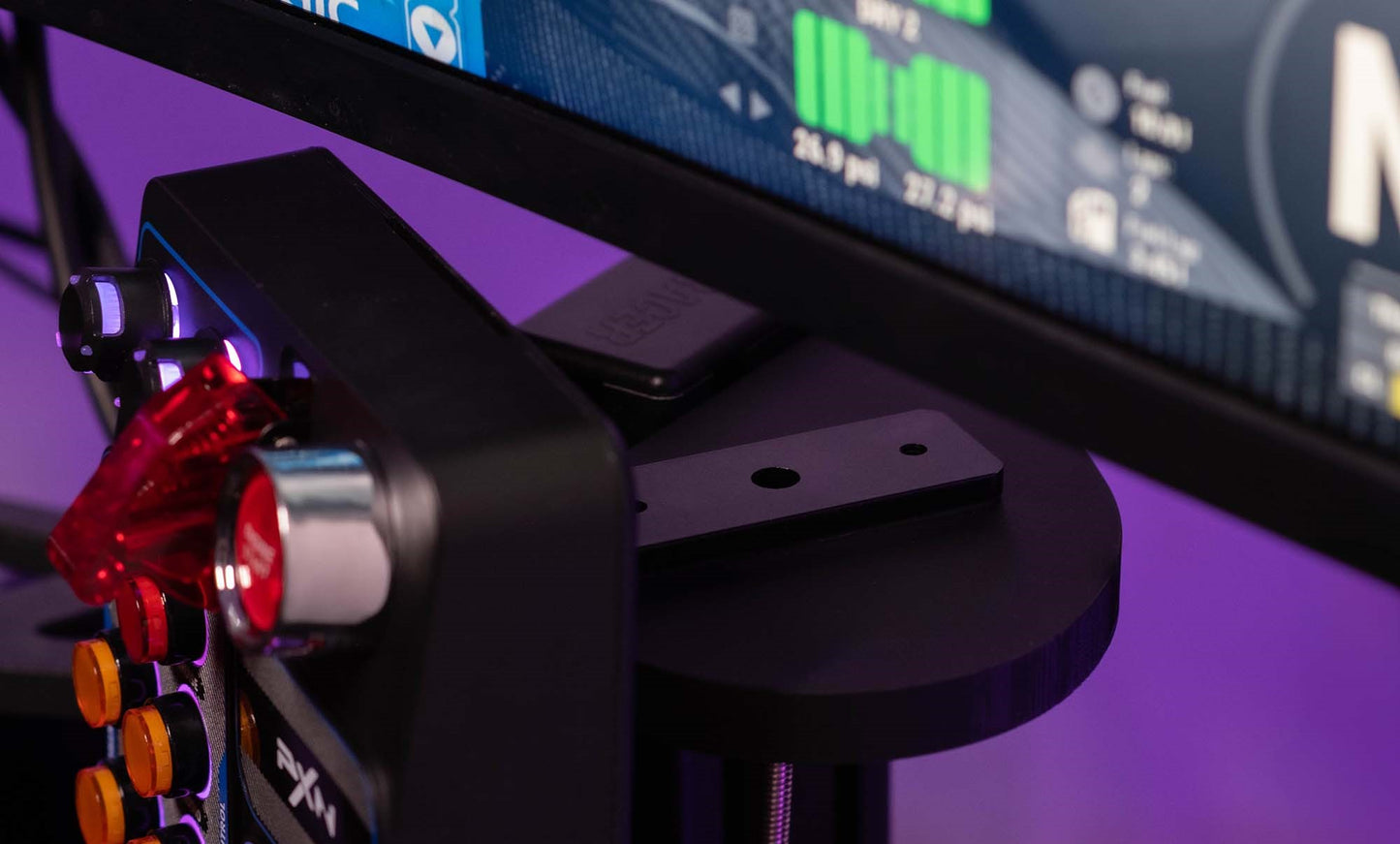

Mounting
The Button Box can be attached directly to the desk using the table clamp supplied. According to PXN, additional brackets for aluminum profiles, for example, are available separately. Alternatively, VESA-compatible standard brackets (100 x 100 millimeters) can also be used.
Package Includes:
- CB1 Control Box
- Desktop mount
- USB-C to USB-A cable
- USB-C to USB-C cable
- M5 screws
- M5 Allen key
